SHANGHAI LZQ TOOL    Profile tools    face cutter

face cutter

Super-hard processing of professional, special, non-standard, special shaped and  new  products with any kind, any shape and tolerance.
Alibaba

Details

face cutter

Super-hard processing of professional, special, non-standard, special shaped and  new  products with any kind, any shape and tolerance.

If you have any similar inquiry, please fax us your address or call us to get samples in the photos and related catalogue for your reference (only a small amount is allowed).

We keep around RMB 20~3 0Million turnover stock articles such as raw material ,semi- products, finished products in ordinary year , we are capable to produce according to drawing or sample provided by customer, so as to present you a favorable cost-performance ratio…Welcome to visit our factory

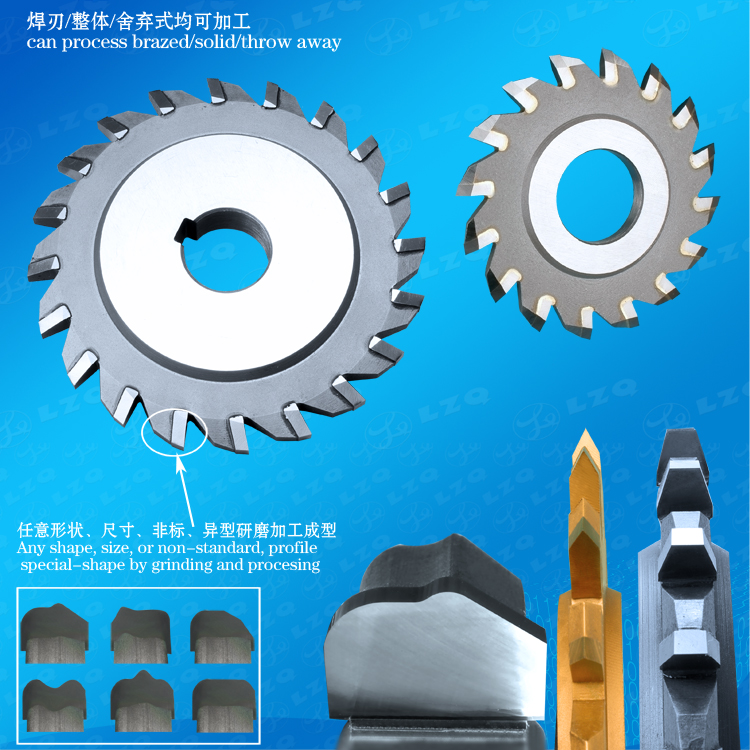

Our company supplies every kind of solid ultra micro-grain quality carbide sliiting cutter with different tooth shape such as direct tooth, radius tooth, staggered tooth, high-low tooth, semi-circle keyboard milling cutter, T-type slot milling cuttter, angle milling cutter, HSS cutting miilling cutter, side and face milling cutter. Those products are widely used in glass accessories, bicycle parts, watches and etc of light machinery industry. They have great advantage in quick cutting efficiency, high wear resistance and high hardness. We can control thickness tolerance in 5μm ,outer diameter tolerance in 0.03mm, side runout in 5μm and surface roughnss in 0.4μm. Those are used in a few pcs together, and have very high precision.



“A” tooth: straight tooth (ratched type)
It is mainly applied in finish milling and cutting. Its milling and cutting depth is shallow, about 3~5mm.“AW” tooth: it is improved one based on “A” tooth. Tooth profile is left and right single inclined type. Its tooth function is same as that of “A” tooth, but its efficiency is higher.


“B” tooth: curved tooth (cam-generated type)
Tooth profile is bending flat tooth, mainly applied to cut deep groove. The cutting resistance is stronger than “A” tooth and the groove is deeper.
