face and side milling cutter

face and side milling cutter

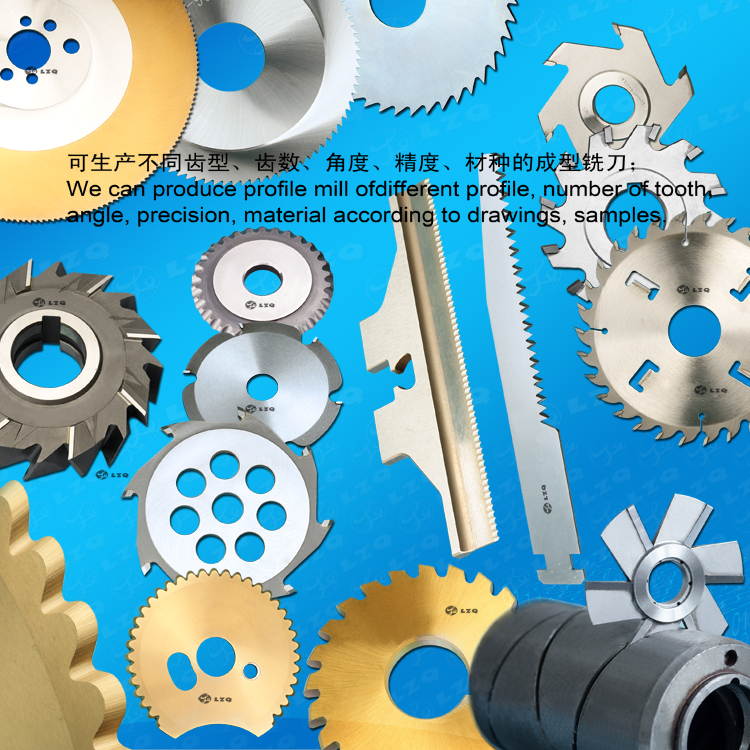

Super-hard processing of professional, special, non-standard, special shaped and  new  products with any kind, any shape and tolerance.

※If you have any similar inquiry, please fax us your address or call us to get samples in the photos and related catalogue for your reference (only a small amount is allowed).

※We keep around RMB 20～30 Million turnover stock articles such as raw material ,semi-products, finished products in ordinary year , we are capable to produce according to drawing or sample provided by customer, so as to present you a favorable cost-performance ratio…Welcome to visit our factory。

“BW” tooth: curved tooth (alternately beveled)
Tooth profile is left and right single inclined bending flat tooth, the improved one based on “B” tooth, mainly applied to cut thicker material of abnormal profile, with stronger cutting resistance, applied for general cross-cutting saw.

“C” tooth: “HI-LO” tooth (three-tooth regrinding; rough and finish tooth machining)
Its tooth profile is high and low ladder tooth profile. The difference between front and back tooth is 0.15±0.3mm. The front tooth is double-bevel, and the back tooth is flat. Its cutting efficiency is high, and can reduce cutting force when assisting in cutting saw.

“BR tooth: it is latest improved design of “B” tooth, with a fine cutting groove of about 0.4mm at the top of tooth. Its function is to re-break waste materials from cutting and sawing work pieces and to increase discharge rate, so that comparing with “BW” tooth, its cutting and sawing efficiency increases by 25%.

ASP60A :
imported ultra high wear-resistant high-grade high cobalt powder steel, quenched:HRC70°±2°, with excellent wear resistance and impact resistance. Comparing with HSSE\HSS-AL and HSSCo, it has 4~8 times lifetime, and can guarantee uniformity and conformity rate of machined products. It is often applied in general equipment for machining various materials including Ni\Cr\Mo\Si\Ti) that are hard to machine like high alloy\heat-resistant alloy\cast iron of nickel-vanadium-titanium alloy\stainless steel. It is excellent machining tool before heat treatment. It has excellent high temperature machining and comprehensive performance, and allows higher cutting speed. The higher the hardness of machined materials, the more remarkable the effect. Because its roughness is not so good, it is not suitable for discontinuous cutting or for using under processing system of insufficient rigidity, otherwise, cutter will be hit or chipping will happen.
