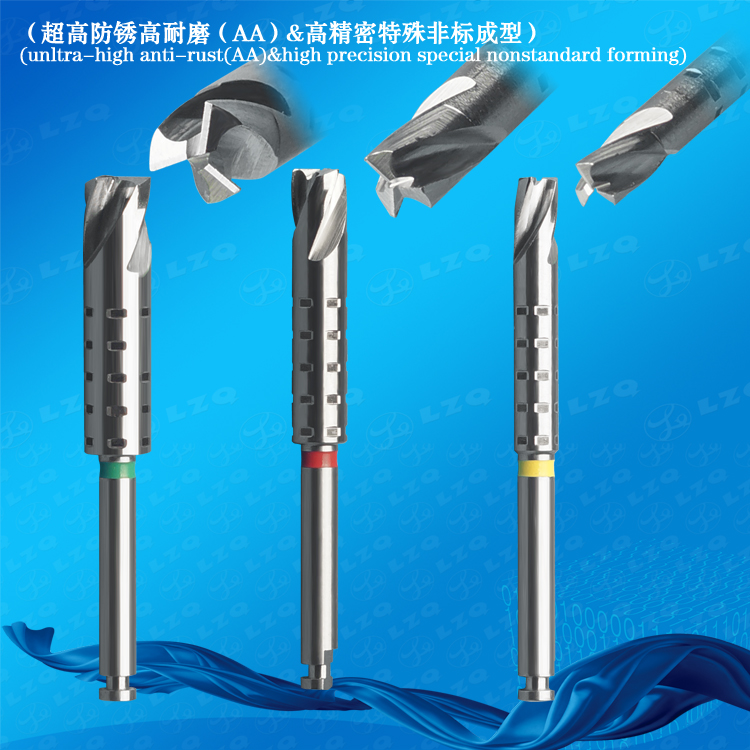

Bottom Drill,Sinus lift bur,Guided Spade Drill

Bottom Drill,Sinus lift bur,Guided Spade Drill

Products Description：

Application domain:    for dental implantology

Material:    Ultra high rust-proof and high wear-resistant stainless steel，ceramic

        LZQ is an OEM factory that produces a variety of dental implant drills, for example, Lance Drill P172, Side Cutting Drill P150, Screwdriver P79, Drill Key P47, Drill Extension P44, etc. We can also produce the complete surgical kits for customers.

         Chip collector, Bone deposition drill and reamer series commonly used for skeletal fragment collection and bone powder accumulation to the crest as reference；

       Regular stock material: Ultra-high anti-rust & high wear-resistant stainless steel (AA)(HRC54°±2°Section)

     Deep groove to top, chip accumulation to the crest. (It can be with black, yellow, full matt, full shiny, partial matt + partial shiny and other surface treatment)

① 2-flute commonly-used specification: Any size series of edge diameter between Φ0.80mm～Φ5.50mm

    3-flute commonly-used specification: Any size series of edge diameter betweenΦ0.80mm～Φ7.95mm

4-flute commonly-used specification: Any size series of edge diameter between Φ2.0mm～Φ7.95mm

② The series with regular number of flutes, but cutting length up to 55mm and total length up to 65mm, processed with any step, taper angle, shape, sharpness requirements.

• The conventional 10°~12°helical edge can be sharp, burnishing, passivated, or front-sharp but rear-blunt.

      Corresponding and matching drills and tools of different types, forms, shapes, structures can be high precisely ground to mold according to different brands and different types of implants forms, shapes, structures, etc.

      They can be high precisely and high hard ground to mold with materials such as ceramic, carbide, superhigh anti-rust and high wear resistant stainless steel (AA), Ti, Ti alloy, etc

      Since 2002, LZQ has been focusing on precision manufacturing for sophisticated molding of high-end high-performance medical instruments, medical cutters, and accessories. We generally don't participate in any design, application and supporting certification services of medical tools. We mainly grind high-hardness materials after heat treatment, supplemented by EDM, sodick/+GF+WEDM, grind or polish after non-traditional turning processs, so with excellent concentricity ◎, cylindricity , circumferential vibration tolerance and full vibration tolerance. We can use any kind of imported high-quality materials and hard-grind to mold after heat treatment, or customers could provide us raw material after heat treatment to do hard-grinding. As long as you have samples with best work performance and express clear about the requirements of key attention, LZQ can test all parameters concerned by your esteemed company, and use the same or higher-quality materials to mold the geometric of different grades or higher precision grades and process by CBNC superhard superfinishing, which can make products that completely exceed quality of the existing international first-class-brand ones if only the design concept is appropriate.
